EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity

  • EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity
  • EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity
  • EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity
  • EM7345 150 Mbps DL 50 Mbps UL Data Rate LTE Network Type Sierra Wireless Cellular Device Providing Stable Wireless Connectivity
Place of Origin China
Nombre de la marca Sierra Wireless
Model Number EM7345
Cantidad de orden mínima 100
Precio $7.00 - $16.00/pieces
Detalles de empaquetado Los originales son nuevos.
Tiempo de entrega 2-5 días laborables
Condiciones de pago LC, T/T
Capacidad de la fuente 10000 piezas/piezas por día
Datos del producto
Tecnología de red LTE Fuente de alimentación 3,4–4,2 V
Formas de pago PayPal Bandas de frecuencia B1 (2100MHz)、B2 (1900MHz)、B3 (1800MHz)、B4 (AWS)、B5 (850MHz)、B7 (2600MHz)、B8 (900MHz)、B13/B17/B18/B19
soporte del sistema operativo Windows 7/8, Linux Certificaciones FCC, CE, GCF, PTCRB, etc.
GNSS Soporta GPS, A-GPS, Glonass Interfaz principal USB 2.0
Deja un mensaje
Descripción de producto

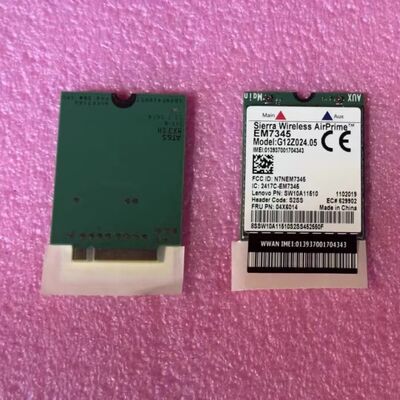

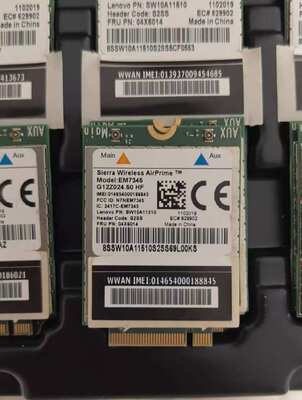

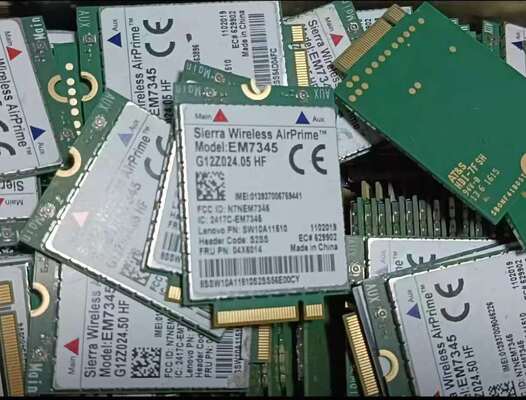

Sierra Wireless AirPrime EM7345 Datasheet


Sierra Wireless AirPrime EM7345 is a 4G LTE M.2 wireless communication module based on the Intel XMM 7160 platform. It is mainly used for mobile broadband in laptops, tablets and other devices, launched in 2014.


1. Core Specifications


  • Manufacturer: Sierra Wireless
  • Chipset Platform: Intel XMM 7160
  • Form Factor: M.2 2230 (PCIe), 52 pins
  • Dimensions: 42 × 30 × 2.3 mm
  • Power Supply: 3.4–4.2V
  • Operating Temperature: -10°C ~ +55°C


2. Network & Speed



LTE FDD Bands (Global, including mainstream Chinese bands)


  • B1 (2100MHz), B2 (1900MHz), B3 (1800MHz), B4 (AWS), B5 (850MHz), B7 (2600MHz), B8 (900MHz), B13/B17/B18/B19/B20


3G/2G


  • UMTS/HSPA+: 2100/1900/850/900/1700 MHz
  • GSM/GPRS/EDGE: Quad-band 850/900/1800/1900 MHz


Peak Data Rate


  • Downlink: 100 Mbps (LTE Cat.3)
  • Uplink: 50 Mbps


3. Interfaces & Features


  • Main Interface: USB 2.0
  • Others: SIM card interface, GPIO, I2C, UART, ADC
  • GNSS: Supports GPS, A-GPS, Glonass
  • Voice: No voice calling (data-only)
  • OS Support: Windows 7/8, Linux
  • Certifications: FCC, CE, GCF, PTCRB, etc.


4. Typical Applications


  • Built-in 4G WWAN for laptops (e.g. ThinkPad)
  • Mobile networking for industrial tablets, industrial PCs, POS terminals
  • IoT gateways, in-vehicle 4G data communication

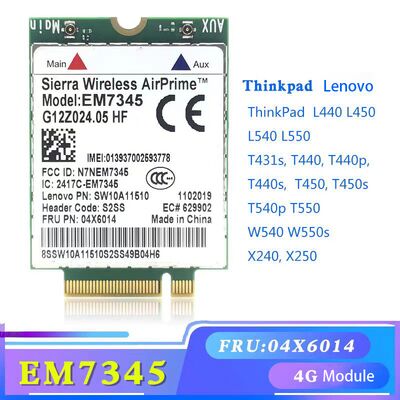

5. Common FRU Part Numbers


  • 04X6014 (Universal version for ThinkPad)


6. Difference between EM7345 & EM7355


  • EM7345: Global version, supports B1/B3 (China Unicom/China Telecom 4G)
  • EM7355: North American version, does not support B1/B3
